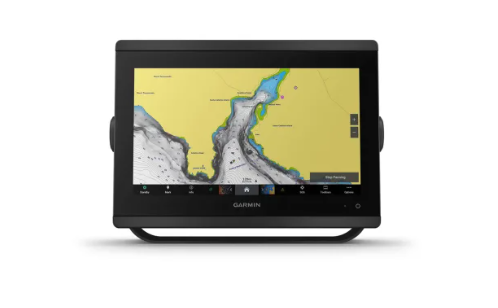

Garmin GPSMAP 8412XSV


Garmin GPSMAP 8412xsv Combo offers ClearVu and SideVu as well as traditional CHIRP sonar in one package and brings it all together with a sleek glass helm styled IPS screen to display all the information clearly.

  • Display: FHD 1920 x 1080-pixel Full HD IPS touchscreen, offers wide viewing angles and clarity even in bright sunlight or with polarized sunglasses
  • Supports full range of sonar types, ClearVu, SideVu CHIRP, Ultra HD scanning sonar.
  • Compatible with Panoptix LiveScope system (requires separate transducer)
  • Designed to allow mounting side by side for glass helm look.
  • NMEA2000/0183 and Garmin Marine Network connectivity
  • Bluetooth, ANT and Wi-Fi wireless networking
  • One Helm allows connection to many third-party devices, with J1939 for engine communication and USB touch output protocols for controlling a standard PC
  • Smart Mode controls allow for presets to be configured for one touch docking, cruising, fishing anchoring and more.
  • Sail Assist shows relevant data, displays and pre-race guidance.
  • Pairs with Active Captain app via Wi-Fi for smart notifications, One Chart and community data
  • Gimble bracket & flush mount bezels included in the box.

What’s in the Box:

  • GPSMAP 8412xsv
  • Power cable
  • NMEA 2000® drop cable
  • NMEA 2000 T-connector
  • Bail mount with knobs
  • Flush mount kit
  • Sun cover
  • Trim piece snap covers
  • Documentation

Packaged Weight 6.55 kg
Packaged Dimensions 43 × 30 × 23 cm
SKU: 010-02092-02 Categories: ,
